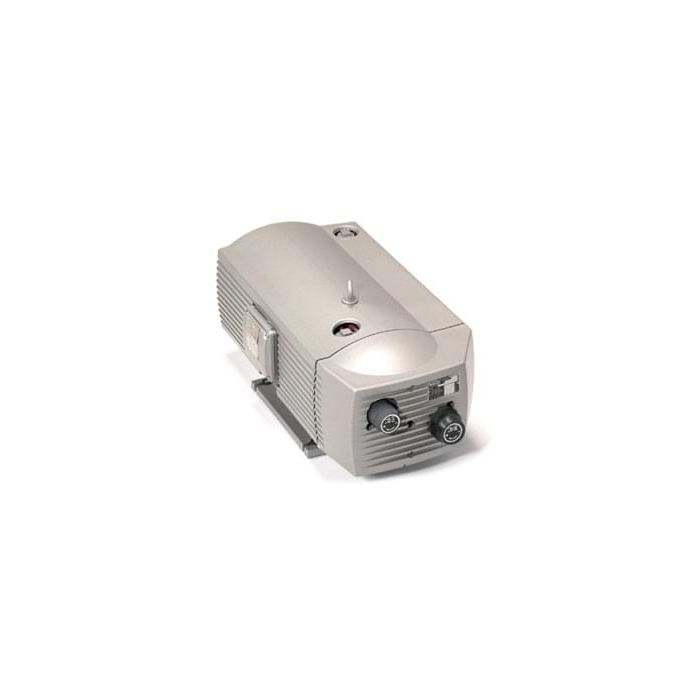

T.4000 Rotary Vane Combined Pressure/Vacuum Pump

Oil-less rotary vane combined pressure/vacuum pumps with carbon vanes, built in primary and secondary suction filters, built in carbon dust filter, air cooled aftercooler (K model), pressure regulating valve, vacuum regulating valve, flanged to a TEFC motor

>
  • UNIT TYPE:
  • MOTOR POWER:
Capacity Max Pressure Max Vacuum Motor Power Speed Noise level Weight w/motor Choose Product Part #
CFM PSIG In Hg HP RPM dBA Lbs
11 7 15 0.9 1750 68 53
11 7 15 0.9 1750 68 53
11 7 15 0.9 1750 68 53
18 9 18 1.7 1750 72 77
18 9 18 1.7 1750 72 77
18 9 18 1.7 1750 72 77
25 9 18 3 1750 74 101
25 9 18 3 1750 74 101
25 9 18 3 1750 74 101
  • Seal
  • 45 years of experience
